Mechanical Power Transmission Products for Steel Industry
With over 50 countries producing steel and global output exceeding 1.9 billion tones per year, the steel industry demands mechanical components that perform without compromise — where rolling mills, continuous casters, and finishing lines run 24×7 under the most extreme combinations of torque, shock load, and thermal stress in any industrial sector. For steel plant operators from Pune to Pittsburgh, from the Ruhr Valley to the Persian Gulf, coupling reliability at every drive point is the difference between maximum throughput and costly, unplanned shutdowns.
Nu-Teck's Power Transmission Products for Steel Industry
Nu-Teck offers a complete range of power transmission products engineered to withstand the extreme torque, shock, and thermal demands of integrated steel plants, mini mills, and specialty steel producers worldwide.
| Product | Application |
| Special Flexible Gear Couplings | Heavy-duty couplings for rolling mill stands, continuous caster drives, and high-torque steel plant machinery |
| Full Flexible Gear Couplings | Misalignment-tolerant, high-torque couplings for main drive and auxiliary applications across the steel plant |
| Half Flexible Gear Couplings | Rigid-hub, flexible-sleeve design for drives requiring precise shaft alignment with flexibility on one end |
| Torque Limiter Couplings | Overload protection for shear drives, coiler drives, and descaler pumps against sudden jam or seizure loads |
| Disc Couplings | torsionally stiff, backlash-free couplings for precision positioning drives in finishing and processing lines |
| Roller Chain Flexible Couplings | Compact, robust couplings for auxiliary and material handling drives within the steel plant |
| Gears & Pinions | Precision-cut gears for rolling mill gearboxes, pinion stands, and drive train assemblies |
Key Applications of Nu-Teck's Power Transmission Products

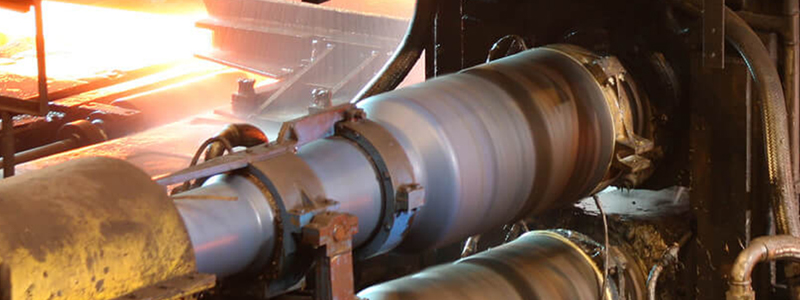

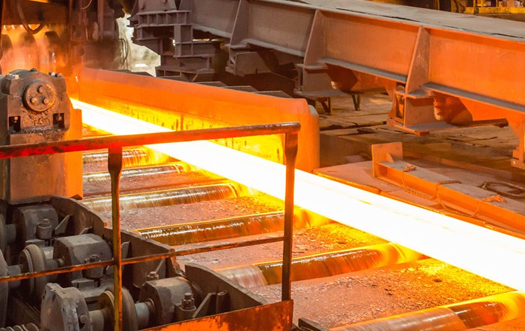

Rolling Mill Main Drive
The rolling mill main drive transmits enormous torque from the motor through the gearbox directly to the rolling stands, where billets or slabs are reduced to the desired thickness under extreme pressure. Couplings here must handle continuous high torque, frequent shock loads during biting, and angular misalignment between the motor, gearbox, and roll — making this the most demanding coupling application in any steel plant.

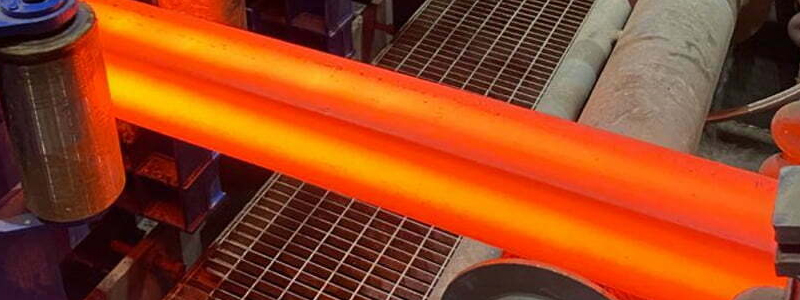

Continuous Caster Drive
Continuous casting machines solidify molten steel into billets, blooms, or slabs through a series of driven rollers operating under precise speed and torque control. Couplings in caster drives must maintain consistent torque transmission under thermal expansion, misalignment, and the constant vibration generated by the solidifying steel strand.

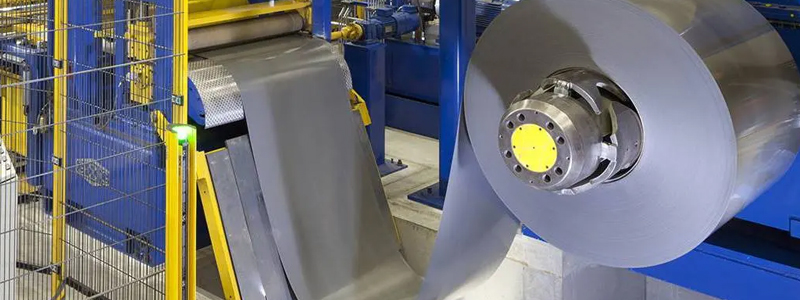

Coiler & Recoiler Drive
Coilers wind the finished hot or cold rolled strip into tight coils at high speeds at the end of the rolling line. The coupling must absorb sudden torque spikes during coil build-up and manage speed variations while ensuring smooth, uninterrupted strip winding without surface defects.

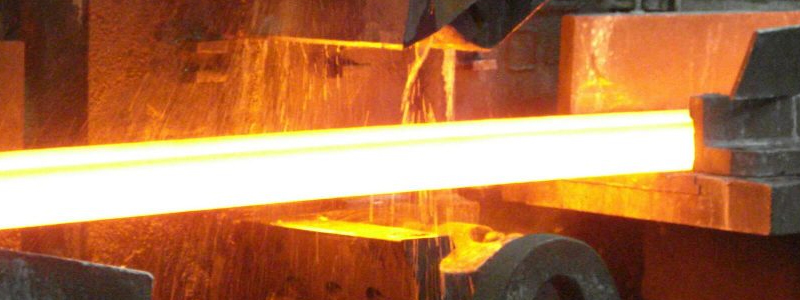

Shear & Crop Shear Drive
Flying shears and crop shears cut the rolled material to length at high speeds during continuous production. These applications demand couplings with integrated overload protection to prevent catastrophic mechanical damage when the shear blade encounters a jam, hard spot, or unexpected material resistance.
Descaler Pump Drive
High-pressure water descalers remove oxide scale from the surface of hot steel slabs before rolling to ensure surface quality. The pump drive coupling must handle pulsating loads, slight shaft misalignment, and continuous duty cycles — while withstanding the high-moisture, high-temperature environment surrounding the descaler system.
Benefits of Nu-Teck Coupling's Power Transmission Products for Steel Industry
Nu-Teck couplings are built for the relentless demands of steel plant operations — delivering proven performance, protection, and cost efficiency across every critical drive point in the plant.
- Extreme Torque Capacity : Engineered to transmit the massive torque demands of rolling mill main drives and continuous caster drives without compromise on service life or reliability.
- Shock Load Absorption : Flexible gear tooth design absorbs impact loads during biting and shearing operations, protecting motors, gearboxes, and structural components from premature failure.
- Thermal & Misalignment Tolerance : Accommodates thermal expansion, angular, parallel, and axial misalignment inherent in high-temperature steel plant environments, significantly reducing bearing and shaft wear.
- Integrated Overload Protection : Torque Limiter Couplings automatically disengage at a preset torque value, preventing catastrophic drive train damage during shear jams, caster seizures, or mill cobbles.
- Long Service Life : Precision-hobbed gear teeth and quality alloy steel construction deliver millions of duty cycles in continuous 24×7 steel plant operations.
- Low Maintenance : Robust sealed designs minimize lubrication intervals and inspection requirements, directly reducing planned maintenance downtime and labour costs.
- Custom & Interchangeable Engineering : Nu-Teck manufactures couplings to exact OEM dimensions, enabling drop-in replacement of imported brands like Regal Rexnord, Maina, and Ringfeder without plant redesign.
Frequently Asked Questions
What type of coupling is recommended for a rolling mill main drive?
Special Flexible Gear Couplings or Full Flexible Gear Couplings are the preferred choice for rolling mill main drives, as they are engineered to handle extreme torque, angular misalignment, and severe shock loads during biting — the most demanding moment in any rolling operation.
How do Nu-Teck couplings handle the thermal expansion common in steel plant environments?
Nu-Teck Flexible Gear Couplings are designed with axial float capability that accommodates thermal expansion of shafts and housings during high-temperature steel plant operations, preventing axial force buildup that would otherwise damage bearings and seals.
Can Nu-Teck Torque Limiter Couplings protect equipment during a mill cobble or shear jam?
Yes. Nu-Teck Torque Limiter Couplings are preset to disengage automatically when torque exceeds a safe threshold — instantly protecting the motor, gearbox, and drive train from catastrophic damage during a mill cobble, shear jam, or caster seizure event.
Can Nu-Teck supply direct replacements for imported couplings currently running in our steel plant?
Yes. Nu-Teck specializes in manufacturing interchangeable couplings that match the exact dimensional and performance specifications of major global brands — offering a cost-effective, locally manufactured, and readily available alternative with full technical support.
What maintenance schedule is recommended for couplings in a continuous casting or rolling mill application?
For 24×7 continuous steel plant operations, Nu-Teck recommends coupling inspection every 3–6 months, covering gear tooth wear, lubrication condition, sleeve integrity, and bolt torque verification. A customized preventive maintenance schedule can be developed based on each drive's specific torque, speed, and operating temperature profile.
